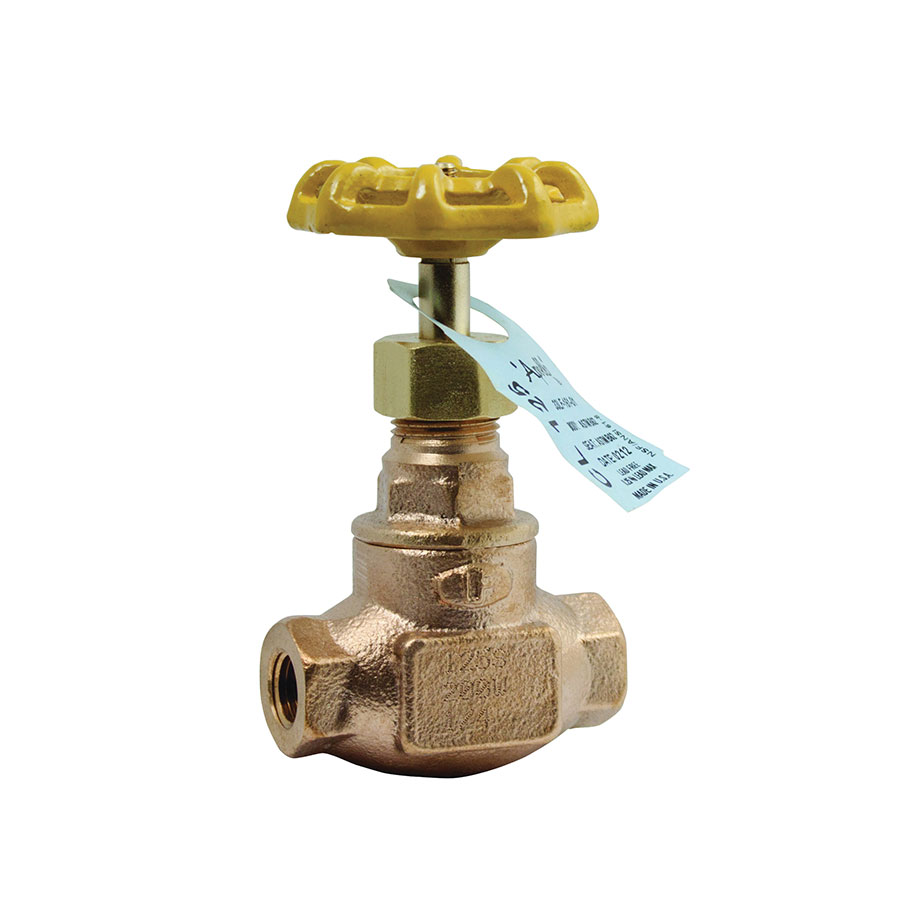

Apollo™ 33LF-161-01 121T-LF Globe Valve, 1/4 in Nominal, NPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN:179642
UPC:670750687167
MPN:33LF16101
Price:
$120.46 / EA
Prop 65:
DESCRIPTION
Apollo™ 33LF16101, Globe Valve, Series: 121T-LF, 1/4 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 1.4 gpm Flow Rate, Media: Water, Handwheel Actuator, 3.46 in Open Top to Inlet Center, Bronze Body, PTFE/Brass/Bronze Trim, Graphite/Grafoil Softgoods, 2.39 in L Dimensions, Domestic
The lead free Apollo™ Model 121T-LF (33 Series) Globe Valve provides a reliable, long lasting, Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials.
Apollo™ 33LF-161-01 121T-LF Globe Valve, 1/4 in Nominal, NPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN:179642
MPN:33LF16101
UPC:670750687167
Price:
$120.46 / EA
Prop 65:
DESCRIPTION
Apollo™ 33LF16101, Globe Valve, Series: 121T-LF, 1/4 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 1.4 gpm Flow Rate, Media: Water, Handwheel Actuator, 3.46 in Open Top to Inlet Center, Bronze Body, PTFE/Brass/Bronze Trim, Graphite/Grafoil Softgoods, 2.39 in L Dimensions, Domestic
The lead free Apollo™ Model 121T-LF (33 Series) Globe Valve provides a reliable, long lasting, Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials.
Specifications
Brand: Apollo™
Weight: 1.05 lbs
Nominal Size: 1/4 in
End Style: NPT
Pressure Class: 125 lb
Body Material: Lead Free Bronze
Actuator Type: Handwheel
Dimensions: 2.39 in L
Flow Rate: 1.4 gpm
Manufacturer Name: Apollo Conbraco
Media: Water
Pressure Rating: 200 psi CWP
Series: 121T-LF
Softgoods Material: Graphite/Grafoil
Temperature Rating: -20 to 406 deg F
Top to Inlet Center: 3.46 in Open
Trim Material: PTFE/Brass/Bronze
Application: Potable Water Service
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: AB 1953 | ANSI 3rd Party Approved and Listed | ARRA Compliant | ASME B1.20.1 | ASTM B21 UNS C46400 Stem | ASTM B371/B505 Disc | ASTM B584 C89836 Body | Complies with Federal Public Law 111-380 | CSA B51 CRN 0C14667.5 | MSS SP-80 | MSS SP-139 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm
Item Features
- Ideal for throttling/flow control applications
- Dezincification resistant bronze construction
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection to MSS requirements
- PTFE seat/brass stem/bronze disc
- Graphite stem packing/Grafoil packing
