Apollo™ 33LF13201

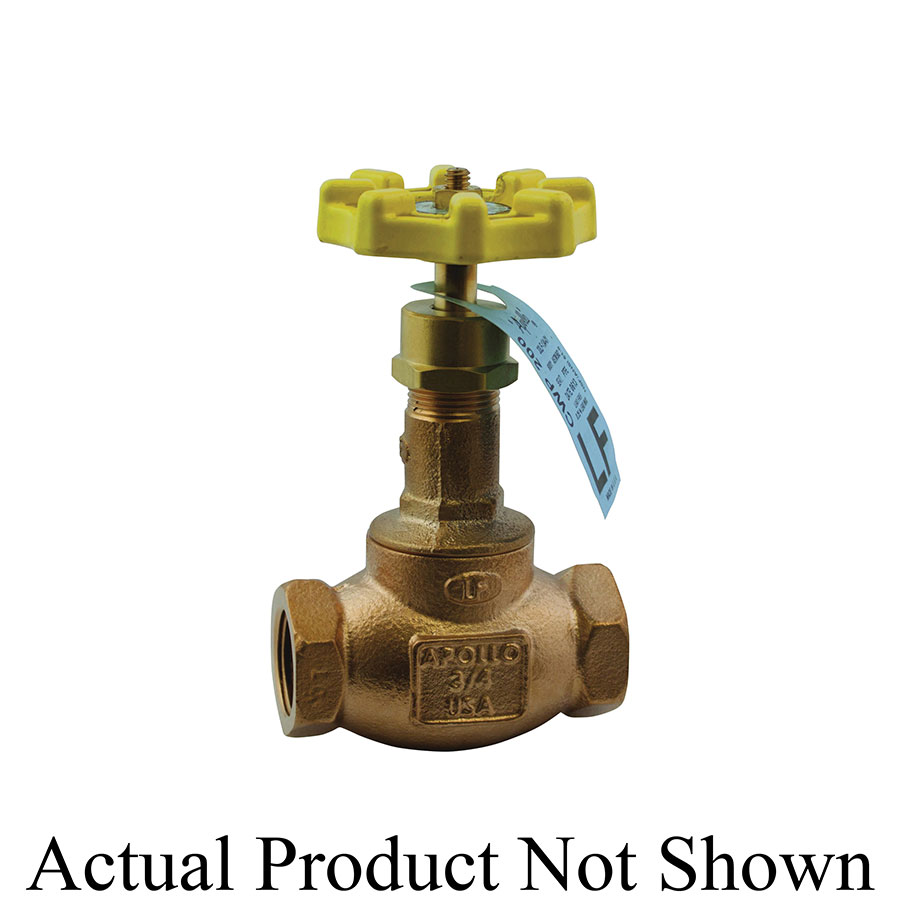

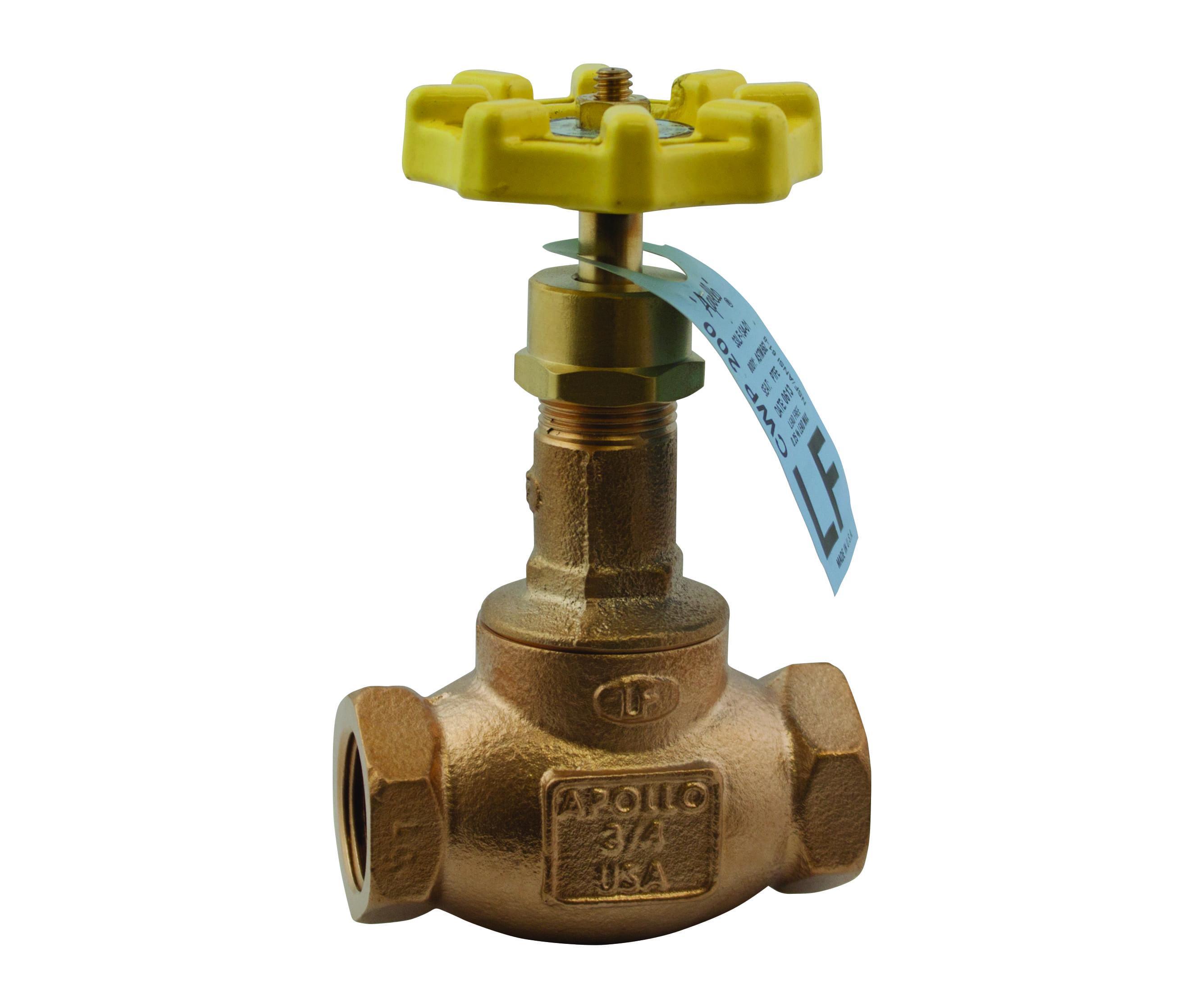

Apollo™ 33LF-132-01 120T-LF Globe Valve, 3/8 in Nominal, NPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic

CBPN:245794

UPC:670750687181

MPN:33LF13201

Price:
$113.91 / EA
Prop 65:

DESCRIPTION

Apollo™ 33LF13201, Globe Valve, Series: 120T-LF, 3/8 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 2.6 gpm Flow Rate, Media: Water, Handwheel Actuator, 3.37 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 2.39 in L Dimensions, Domestic

The lead free Apollo™ Model 120T-LF (33 Series) Globe Valve provides a reliable, long lasting Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials.

Apollo™ 33LF-132-01 120T-LF Globe Valve, 3/8 in Nominal, NPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic

CBPN:245794

MPN:33LF13201

UPC:670750687181

Price:
$113.91 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 33LF13201, Globe Valve, Series: 120T-LF, 3/8 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 2.6 gpm Flow Rate, Media: Water, Handwheel Actuator, 3.37 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 2.39 in L Dimensions, Domestic

The lead free Apollo™ Model 120T-LF (33 Series) Globe Valve provides a reliable, long lasting Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials.

Specifications

BrandApollo™
Weight1.03 lbs
Nominal Size3/8 in
End StyleNPT
Pressure Class125 lb
Body MaterialLead Free Bronze
Actuator TypeHandwheel
Dimensions2.39 in L
Flow Rate2.6 gpm
Manufacturer NameApollo Conbraco
MediaWater
Pressure Rating200 psi CWP
Series120T-LF
Softgoods MaterialGraphite/Grafoil
Temperature Rating-20 to 406 deg F
Top to Inlet Center3.37 in Open
Trim MaterialPTFE/Brass
ApplicationPotable Water Service
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI 3rd Party Approved and Listed | ARRA Compliant | ASME B1.20.1 | ASTM B21 UNS C46400 Stem | ASTM B584 C89836 Body | Complies with Federal Public Law 111-380 | CRN 0C14667.5 | MSS SP-80 | MSS SP-139 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm

Item Features

  • Optimum flow capacity
  • Screw-in bonnet
  • Malleable iron rugged hand wheel
  • Back seat protection
  • PTFE seat and disc/brass stem
  • Graphite stem packing/Grafoil packing
