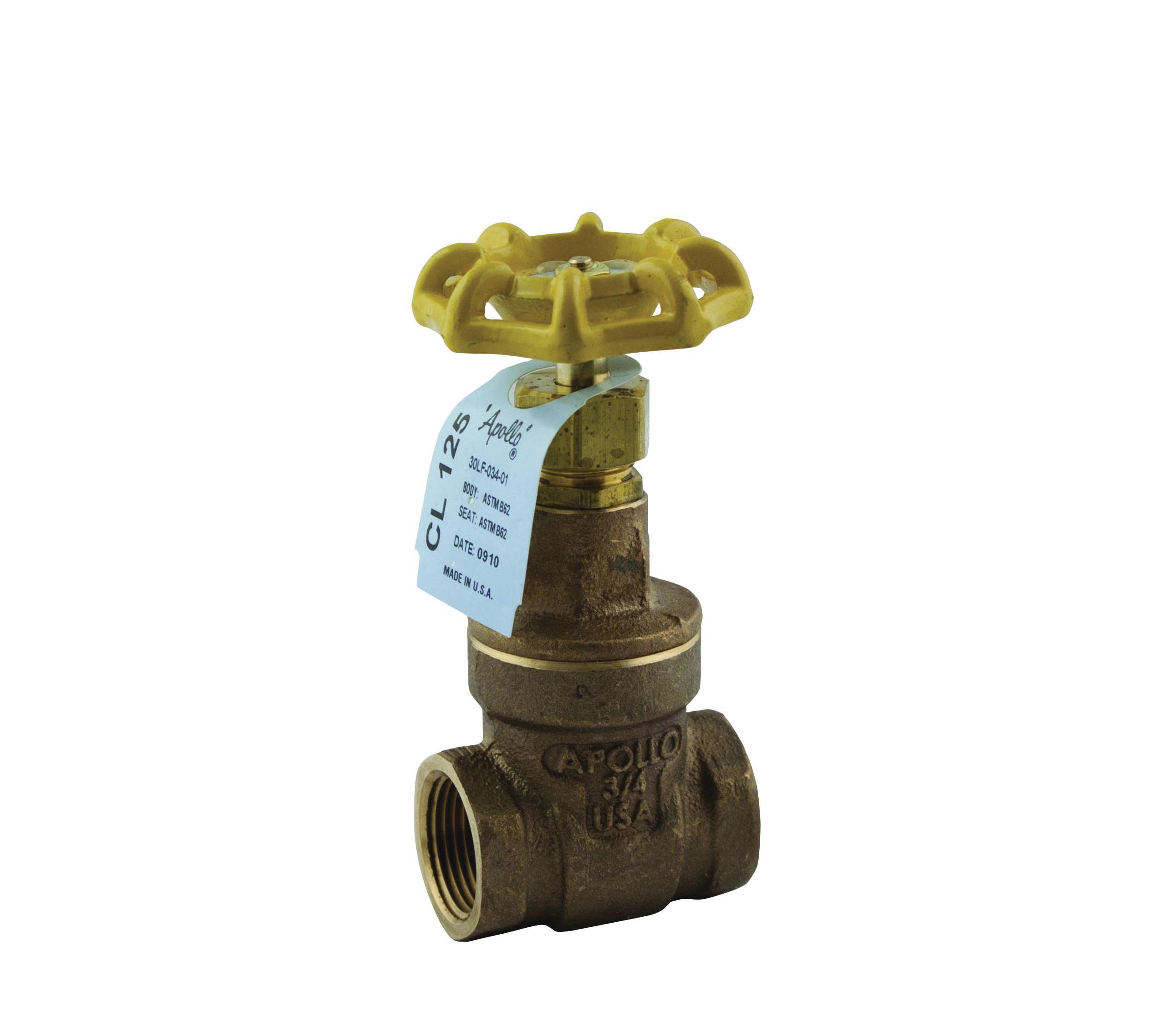

Apollo™ 30LF03401 Lead Free Non Rising Stem Gate Valve, 3/4 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN:172855
UPC:670750616471
MPN:30LF03401
Price:
$92.96 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Lead Free Non Rising Stem, Series: 30LF, 3/4 in Nominal, FNPT End Style, 200/125 psi Pressure, 125 lb Pressure Class, -20 to 406 deg F, 24 gpm Flow Rate, Handwheel Actuator, Bronze Body, Grafoil® Packing Softgoods, 2.07 in L x 4.05 in H Dimensions, Domestic
The lead free Apollo™ model 102T-LF (30LF series) gate valve provides a made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality lead free materials.
Apollo™ 30LF03401 Lead Free Non Rising Stem Gate Valve, 3/4 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN:172855
MPN:30LF03401
UPC:670750616471
Price:
$92.96 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Lead Free Non Rising Stem, Series: 30LF, 3/4 in Nominal, FNPT End Style, 200/125 psi Pressure, 125 lb Pressure Class, -20 to 406 deg F, 24 gpm Flow Rate, Handwheel Actuator, Bronze Body, Grafoil® Packing Softgoods, 2.07 in L x 4.05 in H Dimensions, Domestic
The lead free Apollo™ model 102T-LF (30LF series) gate valve provides a made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality lead free materials.
Specifications
Brand: Apollo™
Weight: 1.2 lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Class: 125 lb
Body Material: Lead Free Bronze
Softgoods Material: Grafoil
Actuator Type: Handwheel
Dimensions: 4.05 in H x 2.07 in L
Flow Rate: 24 gpm
Manufacturer Name: Apollo Conbraco
Pressure Rating: 200 psi CWP
Series: 102T-LF
Temperature Rating: -20 to 406 deg F
Type: Lead Free Non Rising Stem
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | MSS SP-80 | NSF 372 | CSA B51 CRN 0C14667.5 | NSF/ANSI 61-8 Annex F/G | ASME B1.20.1 | PROP65: Cancer and Reproductive Harm
Item Features
- Full port design
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection
- 100% factory tested
