Apollo™ 3020401

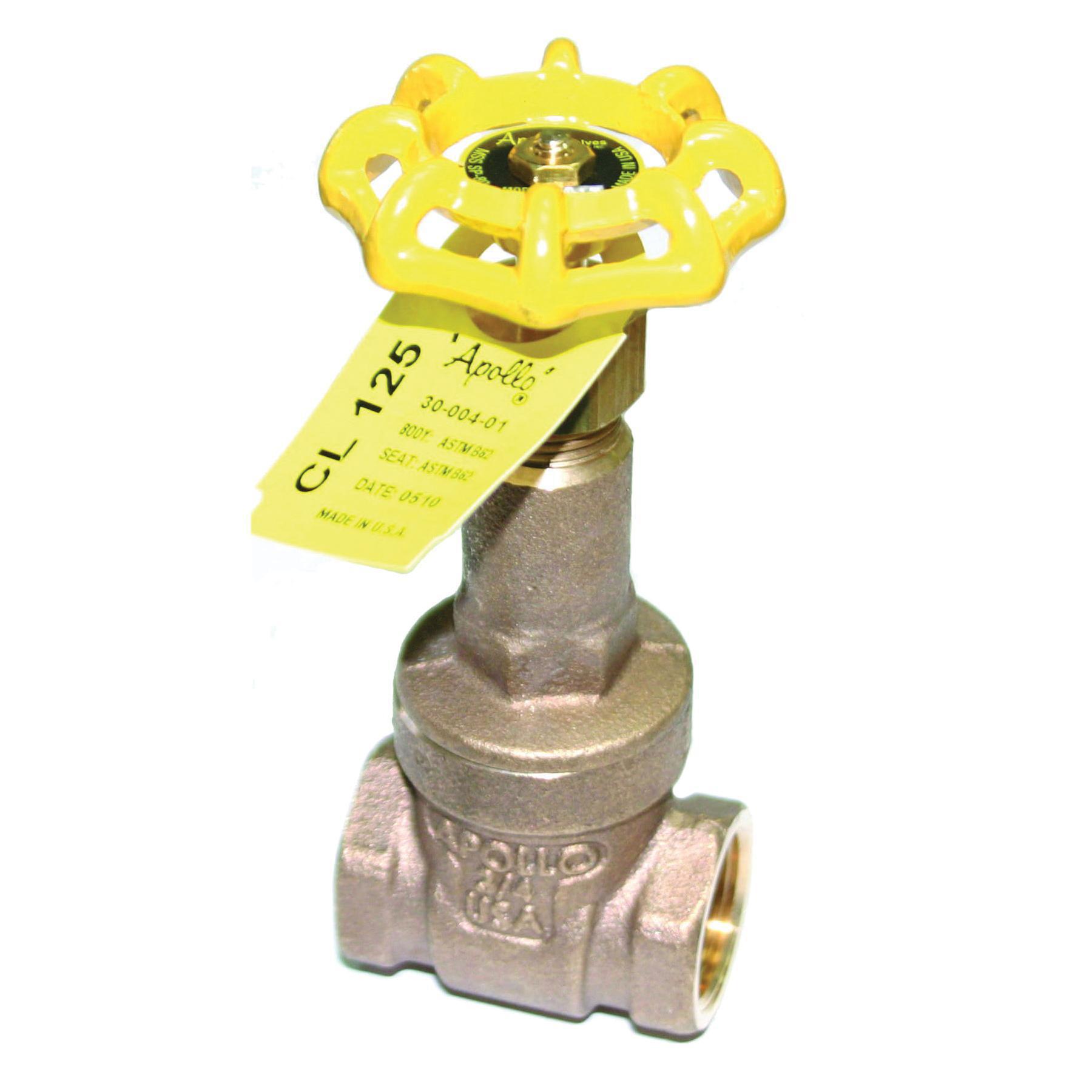

Apollo™ 3020401 107T Rising Stem Gate Valve, 3/4 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic

CBPN:192464

UPC:670750601415

MPN:3020401

Price:
$106.88 / EA
Prop 65:

DESCRIPTION

Apollo™ Gate Valve, Rising Stem, Series: 107T, 3/4 in Nominal, FNPT End Style, 300 psi CWP/150 psi SWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 24 gpm Flow Rate, Full Port, Handwheel Actuator, 5.71 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.07 in L Dimensions, Domestic

The Apollo™ Model 107T (30 Series) Gate Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.

Apollo™ 3020401 107T Rising Stem Gate Valve, 3/4 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic

CBPN:192464

MPN:3020401

UPC:670750601415

Price:
$106.88 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Gate Valve, Rising Stem, Series: 107T, 3/4 in Nominal, FNPT End Style, 300 psi CWP/150 psi SWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 24 gpm Flow Rate, Full Port, Handwheel Actuator, 5.71 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil® Softgoods, 2.07 in L Dimensions, Domestic

The Apollo™ Model 107T (30 Series) Gate Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.

Specifications

BrandApollo™
Weight1.43 lbs
Nominal Size3/4 in
End StyleFNPT
Pressure Class150 lb
Body MaterialBronze
Softgoods MaterialGrafoil
Actuator TypeHandwheel
Dimensions2.07 in L
Flow Rate24 gpm
Manufacturer NameApollo Conbraco
Port TypeFull
Pressure Rating300 psi CWp
Series107T
Temperature Rating-20 to 406 deg F
Top to Inlet Center5.71 in Open
Trim MaterialBrass/Bronze
TypeRising Stem
ApplicationPlumbing, Heating, Building Service Piping System
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant | ASME B1.20.1 | ASTM B62 Body/Disc Wedge | ASTM B21 UNS C46400 Stem | CRN 0C14667.5 | MSS SP-80 | PROP65: Cancer and Reproductive Harm

Item Features

  • Guided solid bronze disc wedge
  • Adjustable graphite stem packing
  • Dezincification resistant
  • 100% factory tested
  • Union bonnet
  • Malleable iron rugged hand wheel
  • Brass stem/bronze disc wedge
  • Grafoil packing
