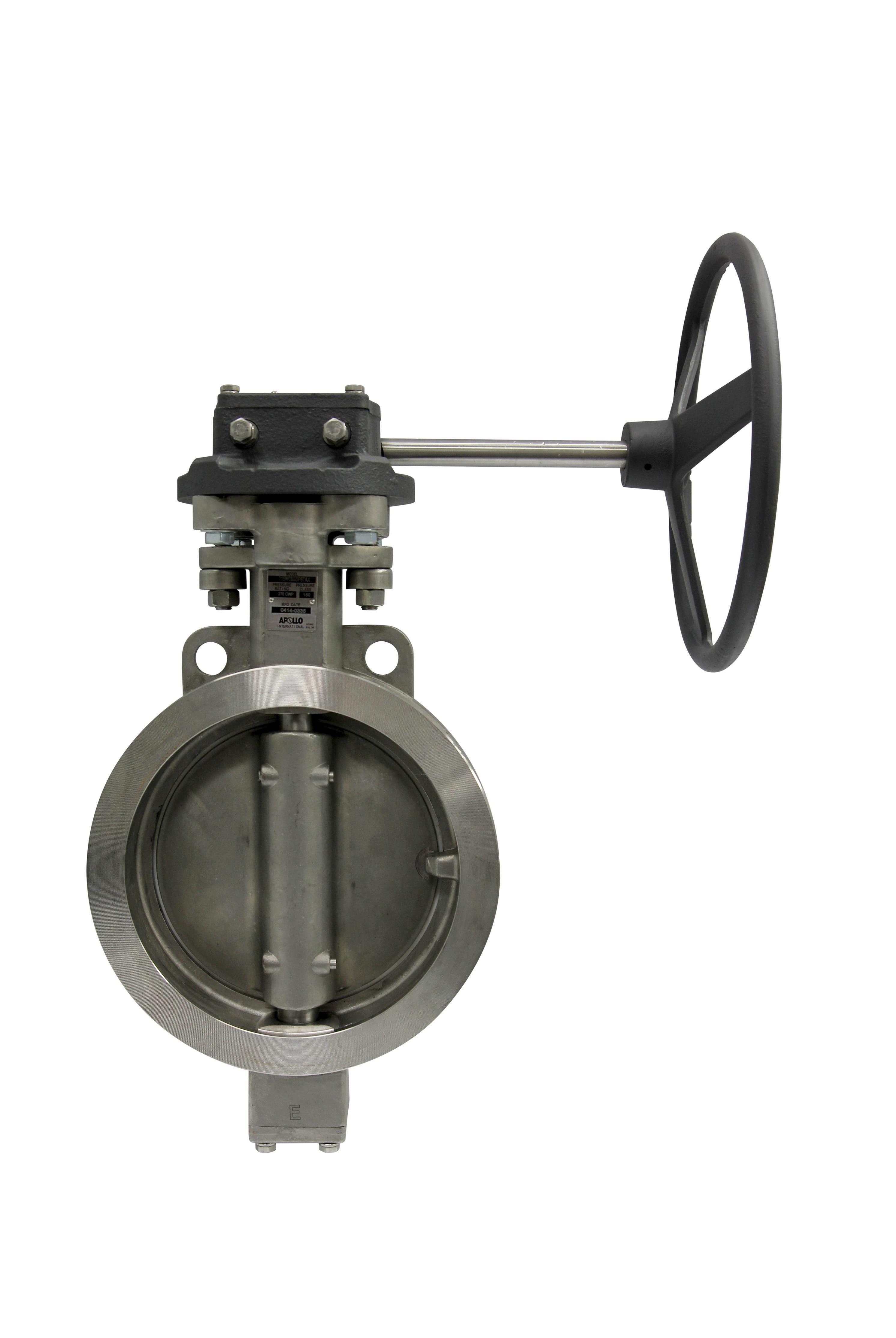

Apollo™ 215W10SSP2FA2 215W Wafer Style Butterfly Valve, 10 in Nominal, 150 lb, 316 Stainless Steel Body, Graphite/PTFE Softgoods, Domestic
CBPN:224371
UPC:670750096211
MPN:215W10SSP2FA2
Apollo™ 215W10SSP2FA2 has been discontinued by the manufacturer.
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ 215W10SSP2FA2, Butterfly Valve, Wafer Style, Series: 215W, 10 in Nominal, 150 lb Pressure Class, Media: Steam, Worm Gear Operated Actuator, 10.827 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, Graphite/PTFE Softgoods, Domestic
Apollo™ 215W10SSP2FA2 215W Wafer Style Butterfly Valve, 10 in Nominal, 150 lb, 316 Stainless Steel Body, Graphite/PTFE Softgoods, Domestic
CBPN:224371
MPN:215W10SSP2FA2
UPC:670750096211
Apollo™ 215W10SSP2FA2 has been discontinued by the manufacturer.
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ 215W10SSP2FA2, Butterfly Valve, Wafer Style, Series: 215W, 10 in Nominal, 150 lb Pressure Class, Media: Steam, Worm Gear Operated Actuator, 10.827 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, Graphite/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 90.86 lbs
Nominal Size: 10 in
End Style: Wafer
Pressure Class: 150 lb
Body Material: 316 Stainless Steel
Type: Wafer Style
Softgoods Material: TFM/Inconel, Graphite (Fire Safe)
Actuator Type: Worm Gear Operated
Disc Material: 316 Stainless Steel
Manufacturer Name: Apollo Conbraco
Media: Steam
Series: 215W
Stem & Pin Material: 17-4PH Stainless Steel Stem/Disc Pin
Top to Inlet Center: 10.827 in
Trim Material: 17-4 PH Stainless Steel Stem
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Body/Disc | MSS SP-68 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm
Item Features
- Standard Apollo high performance butterfly valves are rated for 29 in Hg vacuum
- TFM/Inconel and graphite seal (fire safe) seat
- Standard Apollo special service
- Double offset high performance butterfly valve
- ISO 5211 mounting flange - universal mounting dimensions simplify valve actuation
- Rocker packing gland, shaped packing gland compensates for uneven adjustment of gland nuts
- Extended neck - allows for 2 in of pipe insulation
- Positive cast disc stop - prevents seat damage from over-travel of the disc beyond the closed position
- Jacking taps - allows the use of seat retainer bolts to aid in retainer removal
- Seat retainer, reliable multi-bolt retainer holds and supports the seat
- Corrosion protection - polyamide epoxy primer with high performance polyurethane topcoat is the standard finish for carbon steel valve bodies
- Blow-out proof stem, 17-4 PH stainless steel stem with high strength and good corrosion-resistance, designed per API 609 standard
- Anti-extrusion ring (under stem seals) - prevents the extrusion of stem seals, maintaining optimum seal
- Bearing (lower and upper) - full length provides maximum stem support
- Seat, an advanced free floating, pressure assisted, solid seat design provides an interference and pressure assisted seal
- 17-4 PH stainless steel disc pins are tangentially positioned, placing them in compression rather than shear
- Thrust ring, centers the disc, ensures tight shut-off and long service life, made of 316 stainless steel
