Apollo™ 215L04SSP8TA1

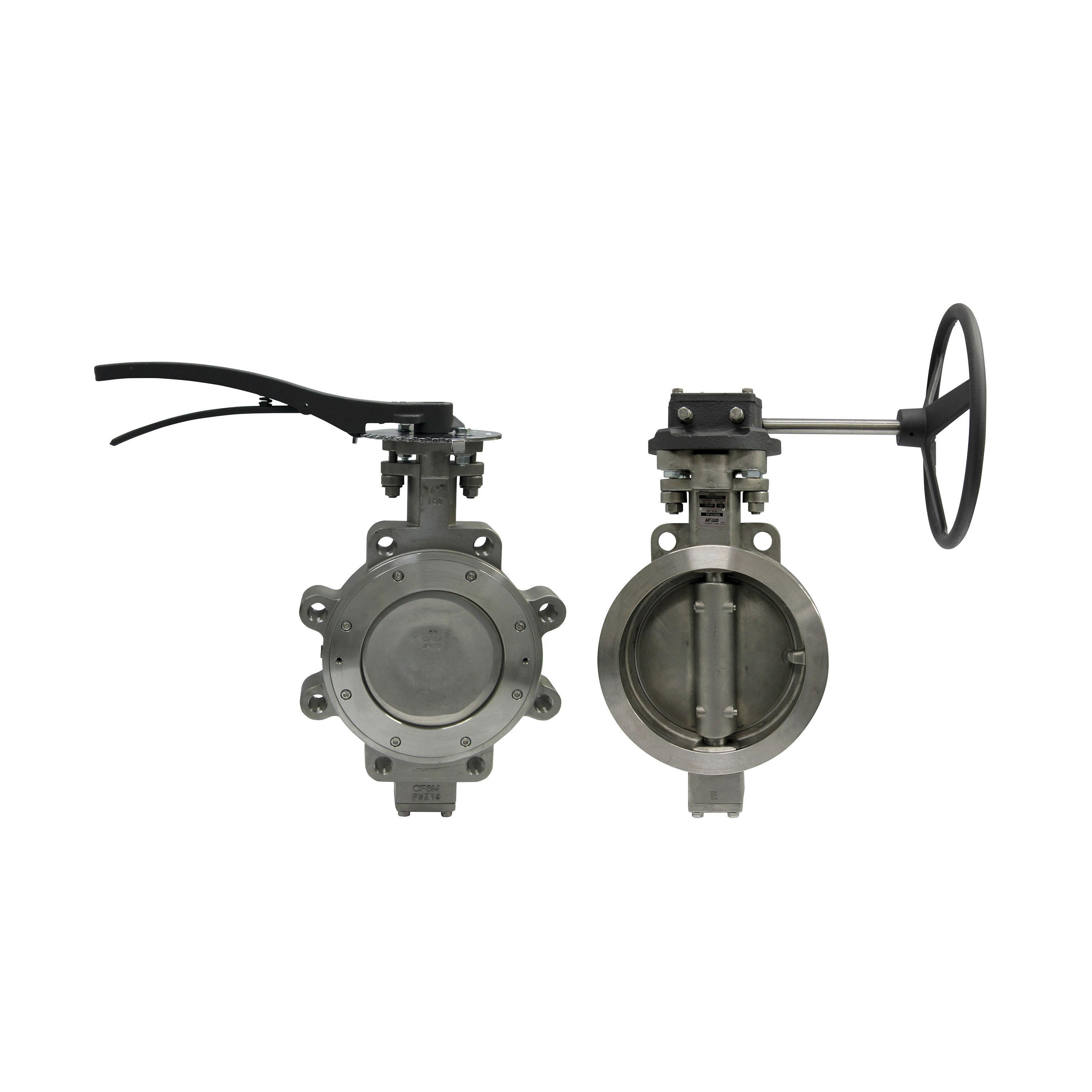

Apollo™ 215L04SSP8TA1 215L Double Offset High Performance Lug Style Butterfly Valve, 4 in Nominal, 150 lb, 316 Stainless Steel Body, PTFE Softgoods

CBPN:196053

UPC:670750091841

MPN:215L04SSP8TA1

Price:
$1844.30 / EA
Prop 65:

DESCRIPTION

Apollo™ 215L04SSP8TA1, Butterfly Valve, Double Offset High Performance Lug Style, Series: 215L, 4 in Nominal, 150 lb Pressure Class, Media: Steam, Lever Operated Actuator, 7.008 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, PTFE Softgoods

Apollo™ 215L04SSP8TA1 215L Double Offset High Performance Lug Style Butterfly Valve, 4 in Nominal, 150 lb, 316 Stainless Steel Body, PTFE Softgoods

CBPN:196053

MPN:215L04SSP8TA1

UPC:670750091841

Price:
$1844.30 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 215L04SSP8TA1, Butterfly Valve, Double Offset High Performance Lug Style, Series: 215L, 4 in Nominal, 150 lb Pressure Class, Media: Steam, Lever Operated Actuator, 7.008 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, PTFE Softgoods

Specifications

BrandApollo™
Weight27.23 lbs
Nominal Size4 in
End StyleLug
Pressure Class150 lb
Body Material316 Stainless Steel
TypeDouble Offset High Performance Lug Body
Softgoods MaterialTFM 1700 w/Glass (Soft seated)
Actuator TypeLever Operated
Disc Material316 Stainless Steel
Manufacturer NameApollo Conbraco
MediaSteam
Series215L
Stem & Pin Material17-4PH Stainless Steel Stem/Disc Pin
Top to Inlet Center7.008 in
Trim Material17-4 PH Stainless Steel Stem
Warranty2 Years
Domestic/ImportImport
Standards and ApprovalsAPI 609 | ASTM A351 Grade CF8M Body | CE Listed | CRN 0C17459.5CL | NSF/ANSI 61 | PROP65: Cancer and Reproductive Harm

Item Features

  • RTFM seat (TFM 1700 with Glass)
  • Double offset high performance butterfly valve
  • Rocker packing gland, shaped packing gland compensates for uneven adjustment of gland nuts
  • Extended neck - allows for 2 in of pipe insulation
  • Positive cast disc stop - prevents seat damage from over-travel of the disc beyond the closed position
  • Jacking taps - allows the use of seat retainer bolts to aid in retainer removal
  • Seat retainer, reliable multi-bolt retainer holds and supports the seat
  • Corrosion protection - polyamide epoxy primer with high performance polyurethane topcoat is the standard finish for carbon steel valve bodies
  • Blow-out proof stem, 17-4 PH stainless steel stem with high strength and good corrosion-resistance, designed per API 609 standard
  • Anti-extrusion ring (under stem seals) - prevents the extrusion of stem seals, maintaining optimum seal
  • Bearing (lower and upper) - full length provides maximum stem support
  • Seat, an advanced free floating, pressure assisted, solid seat design provides an interference and pressure assisted seal
  • 17-4 PH stainless steel disc pins are tangentially positioned, placing them in compression rather than shear
  • Thrust ring, centers the disc, ensures tight shut-off and long service life, made of 316 stainless steel
