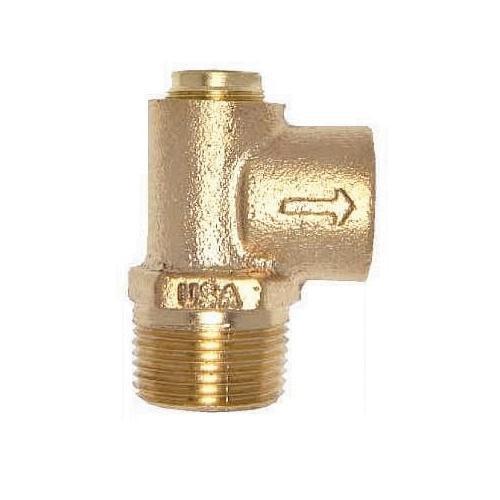

Apollo™ 1620202 16 General Purpose Pressure Relief Valve, 1/2 in Nominal, Male x Female End Style, 75 psi Pressure, Cast Bronze Body, Domestic
CBPN:246990
UPC:670750500459
MPN:16-202-02
Price:
$32.41 / EA
Prop 65:
DESCRIPTION
Apollo™, 1620202, Pressure Relief Valve, General Purpose, Series: 16, 1/2 in Nominal, Male x Female End Style, 75 psi Pressure, 120 deg F, Media: Air/Oil/Liquid/Water, Cast Bronze Body, Silicone Soft Seat Softgoods, 2.12 in H Dimensions, Domestic
Economical relief valves for general purpose non-code overpressure protection and bypass relief applications. Applications include liquid bypass or thermal expansion relief of well pumps, tanks, fire protection systems and all types of water or liquid piping systems. Not intended for steam service.
Apollo™ 1620202 16 General Purpose Pressure Relief Valve, 1/2 in Nominal, Male x Female End Style, 75 psi Pressure, Cast Bronze Body, Domestic
CBPN:246990
MPN:16-202-02
UPC:670750500459
Price:
$32.41 / EA
Prop 65:
DESCRIPTION
Apollo™, 1620202, Pressure Relief Valve, General Purpose, Series: 16, 1/2 in Nominal, Male x Female End Style, 75 psi Pressure, 120 deg F, Media: Air/Oil/Liquid/Water, Cast Bronze Body, Silicone Soft Seat Softgoods, 2.12 in H Dimensions, Domestic
Economical relief valves for general purpose non-code overpressure protection and bypass relief applications. Applications include liquid bypass or thermal expansion relief of well pumps, tanks, fire protection systems and all types of water or liquid piping systems. Not intended for steam service.
Specifications
Brand: Apollo™
Weight: 0.33 lbs
Nominal Size: 1/2 in
End Style: MNPT x FNPT
Set Pressure: 75 psig
Body Material: Cast Bronze
Dimensions: 2.12 in H
Manufacturer Name: Apollo Conbraco
Media: Air/Oil/Liquid/Water
Pressure Rating: 75 psi
Series: 16
Softgoods Material: Silicone Soft Seat
Temperature Rating: 120 deg F
Type: General Purpose
Application: Cold Water Supply Systems, Storage Tanks, Well Pumps
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: PROP65: Cancer and Reproductive Harm
Item Features
- Standard pressure settings from 50 to 175 psi
- Cast bronze body, stainless steel spring
- Silicone soft seat ensures seat tightness, extended service life
- All valves are 100% factory tested
- Maximum recommended service temperature 120 deg F
