Anvil® 0500361134

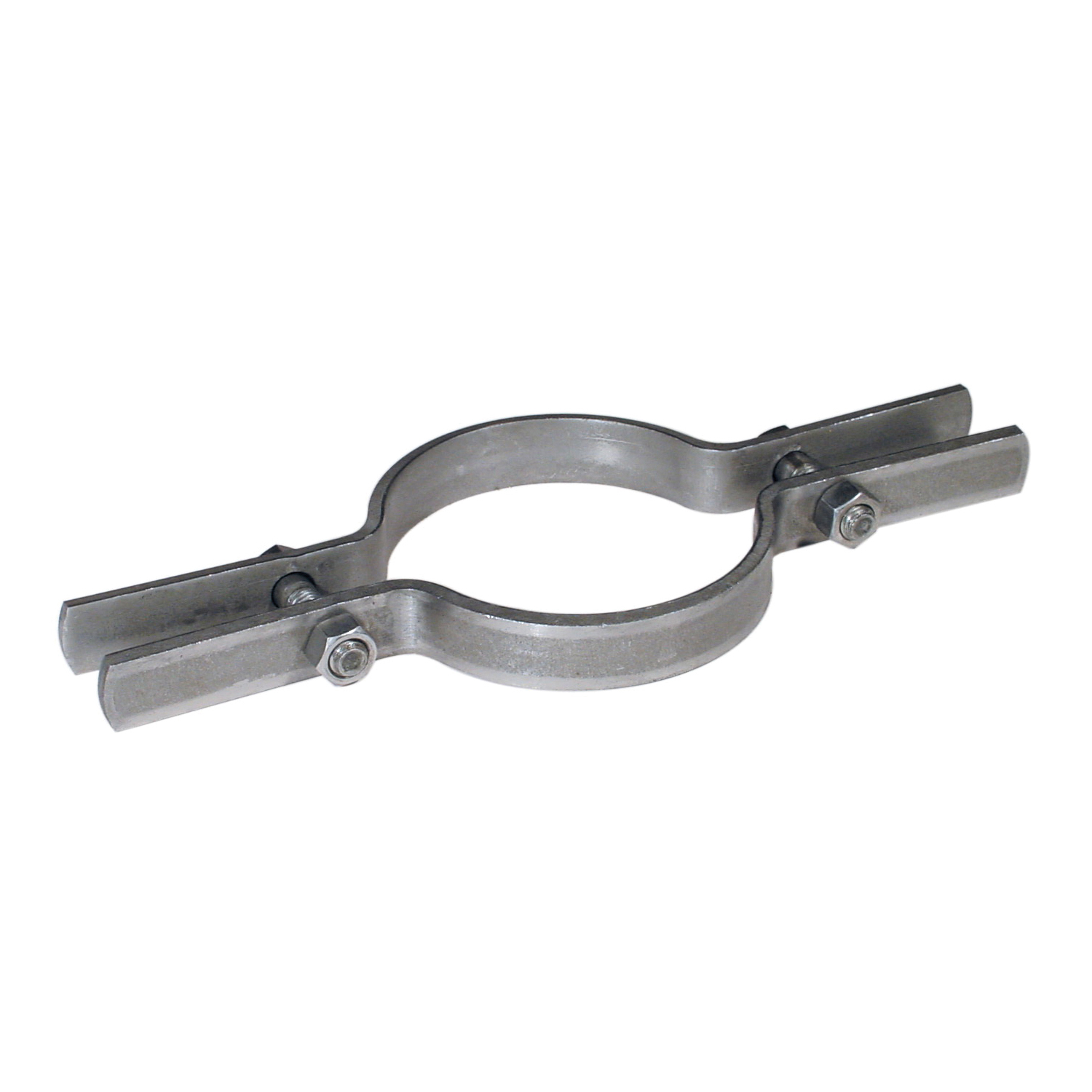

Anvil® 0500361134 FIG 261 Riser Clamp, 8 in Pipe, 5/8 in Dia Bolt, 2500 lb Load, Carbon Steel, Galvanized, Domestic

CBPN:54289

UPC:690291146831

MPN:0500361134

Price:
$63.11 / EA

DESCRIPTION

Anvil® Riser Clamp, Series: FIG 261, 8 in Pipe, 5/8 in Bolt Dia, 2500 lb, 450 deg F, 100 ft-lb, Carbon Steel, Galvanized, 18-1/2 in L x 1-1/2 in W, Domestic

Anvil® 0500361134 FIG 261 Riser Clamp, 8 in Pipe, 5/8 in Dia Bolt, 2500 lb Load, Carbon Steel, Galvanized, Domestic

CBPN:54289

MPN:0500361134

UPC:690291146831

Price:
$63.11 / EA

Anvil Logo

DESCRIPTION

Anvil® Riser Clamp, Series: FIG 261, 8 in Pipe, 5/8 in Bolt Dia, 2500 lb, 450 deg F, 100 ft-lb, Carbon Steel, Galvanized, 18-1/2 in L x 1-1/2 in W, Domestic

Specifications

BrandAnvil®
Weight7.2 lbs
Pipe Size8 in
Bolt Diameter5/8 in
Load Capacity2500 lb
MaterialCarbon Steel
FinishGalvanized
Dimensions18-1/2 in L x 1-1/2 in W
Manufacturer NameASC Engineered Solutions
SeriesFIG 261
Temperature Rating450 deg F
Torque Rating100 ft-lb
ApplicationFor support of stationary steel pipe risers, cast iron pipe or conduit
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsA-A-1192A (Type 8) | ANSI/MSS SP-69 and MSS SP-58 (Type 8) | cULus Listed

Item Features

  • For support of stationary steel pipe risers, cast iron pipe or conduit.
  • Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be PEX industry standards
  • Clamp is designed for standard steel pipe O.D and this must be considered in sizing the riser for other types of piping
