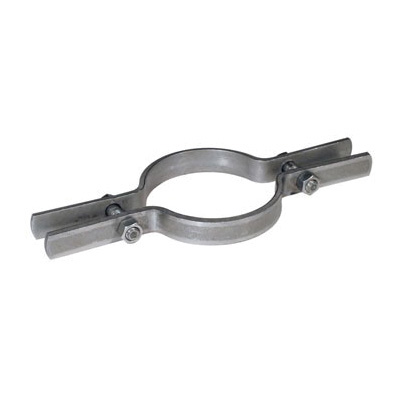

Anvil® 0500361068 FIG 261 Pipe Riser Clamp, 2 in Pipe, 7/16 in Dia Bolt, 300 lb Load, Carbon Steel, Galvanized, Domestic
CBPN:65193
UPC:690291146763
MPN:0500361068
Price:
$13.20 / EA
DESCRIPTION
Anvil® Pipe Riser Clamp, Series: FIG 261, 2 in Pipe, 7/16 in Bolt Dia, 300 lb, 450 deg F, 32 ft-lb, Carbon Steel, Galvanized, 10-1/4 in L x 1 in W, Domestic
Anvil® 0500361068 FIG 261 Pipe Riser Clamp, 2 in Pipe, 7/16 in Dia Bolt, 300 lb Load, Carbon Steel, Galvanized, Domestic
CBPN:65193
MPN:0500361068
UPC:690291146763
Price:
$13.20 / EA
DESCRIPTION
Anvil® Pipe Riser Clamp, Series: FIG 261, 2 in Pipe, 7/16 in Bolt Dia, 300 lb, 450 deg F, 32 ft-lb, Carbon Steel, Galvanized, 10-1/4 in L x 1 in W, Domestic
Specifications
Brand: Anvil®
Weight: 1.31 lbs
Pipe Size: 2 in
Bolt Diameter: 7/16 in
Load Capacity: 300 lb
Material: Carbon Steel
Finish: Galvanized
Dimensions: 10-1/4 in L x 1 in W
Manufacturer Name: ASC Engineered Solutions
Series: FIG 261
Temperature Rating: 450 deg F
Torque Rating: 32 ft-lb
Application: For support of stationary steel pipe risers, cast iron pipe or conduit
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI/MSS SP-58/69 (Type 8) | Complies with Federal Specification A-A-1192A (Type 8)/WW-H-171-E (Type 8) | cULus Listed
Item Features
- For support of stationary steel pipe risers, cast iron pipe or conduit.
- Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
- Bolt torques should be PEX industry standards, clamp is designed for standard steel pipe OD and this must be considered in sizing the riser for other types of piping
- This product is not intended for use with hanger rods
- 4-1/4 in bolt to bolt distance
- Clamp is designed for standard steel pipe OD and this must be considered in sizing the riser for other types of piping
