Anvil® 0500361050

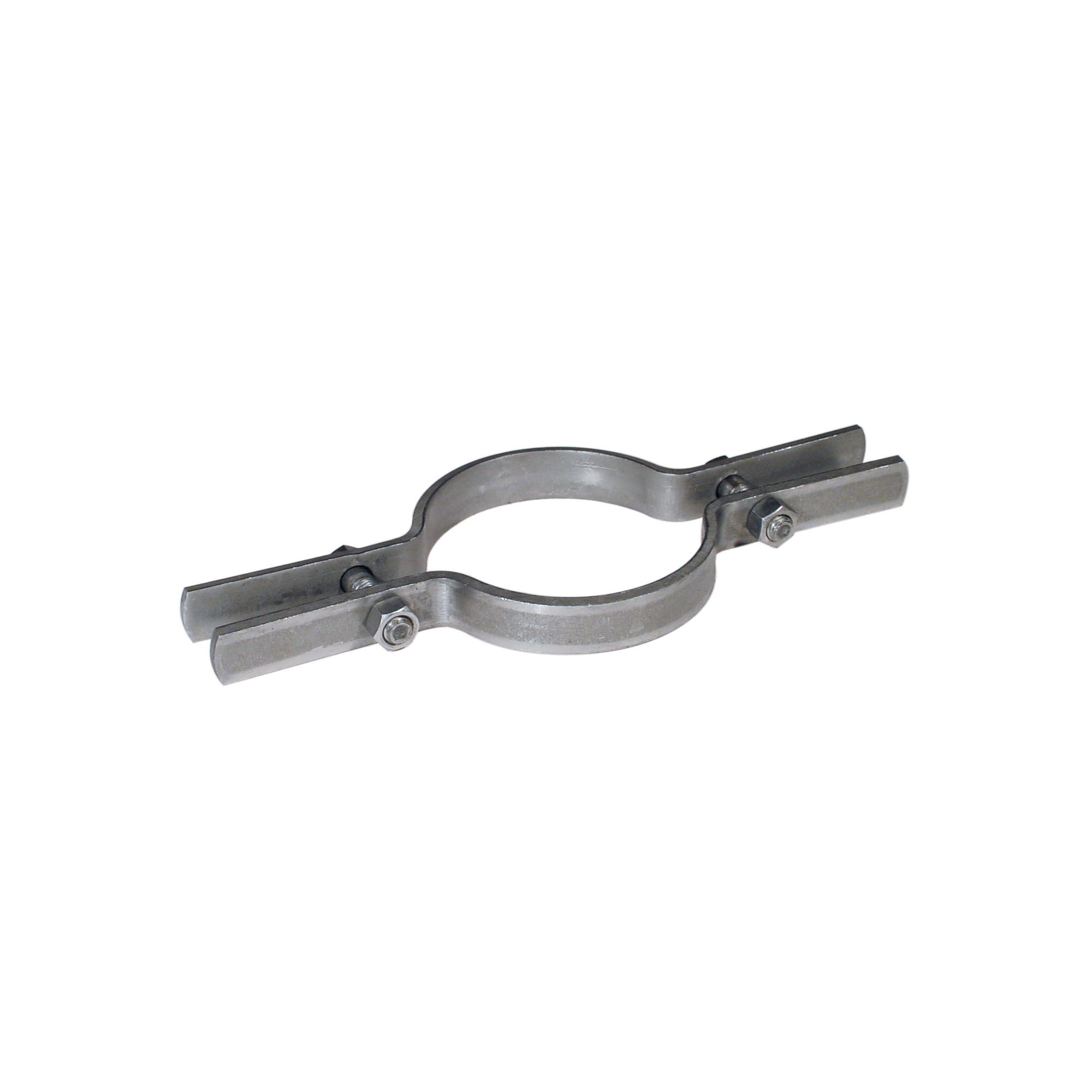

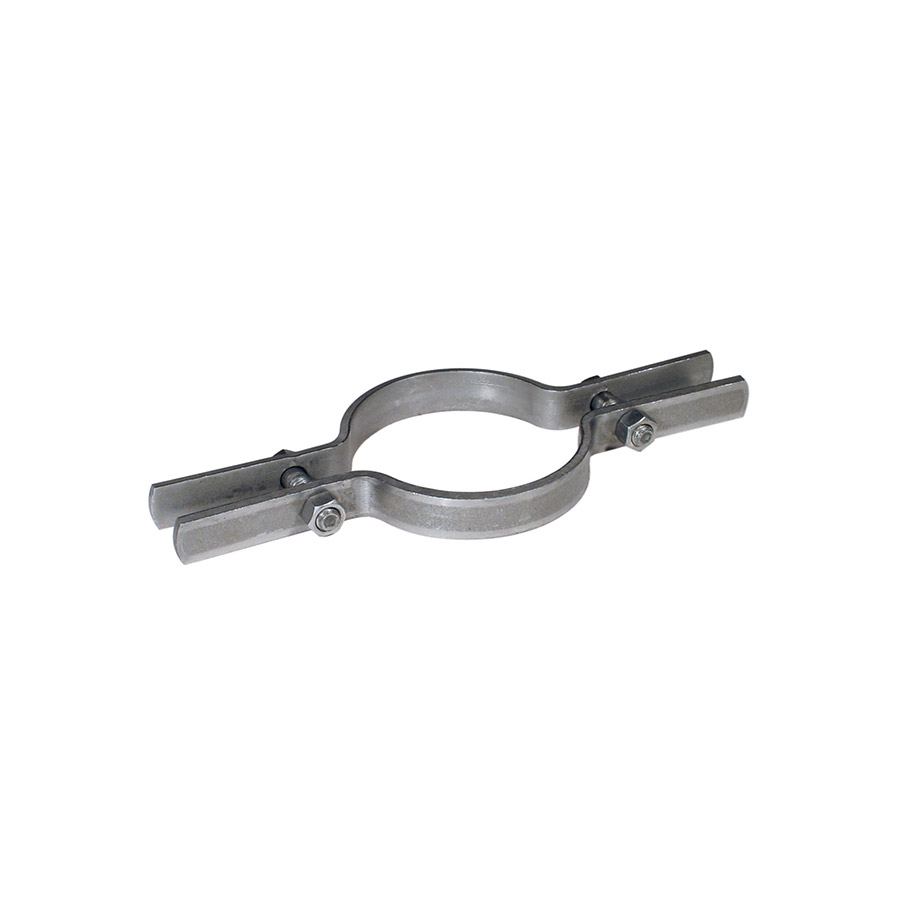

Anvil® 0500361050 FIG 261 Pipe Riser Clamp, 1-1/2 in Pipe, 3/8 in Dia Bolt, 250 lb Load, Carbon Steel, Galvanized, Domestic

CBPN:38561

UPC:690291146756

MPN:0500361050

Price:
$12.60 / EA

DESCRIPTION

Anvil® Pipe Riser Clamp, Series: FIG 261, 1-1/2 in Pipe, 3/8 in Bolt Dia, 250 lb, 450 deg F, 21 ft-lb, Carbon Steel, Galvanized, 10-1/4 in L x 1 in W, Domestic

Anvil® 0500361050 FIG 261 Pipe Riser Clamp, 1-1/2 in Pipe, 3/8 in Dia Bolt, 250 lb Load, Carbon Steel, Galvanized, Domestic

CBPN:38561

MPN:0500361050

UPC:690291146756

Price:
$12.60 / EA

Anvil Logo

DESCRIPTION

Anvil® Pipe Riser Clamp, Series: FIG 261, 1-1/2 in Pipe, 3/8 in Bolt Dia, 250 lb, 450 deg F, 21 ft-lb, Carbon Steel, Galvanized, 10-1/4 in L x 1 in W, Domestic

Specifications

BrandAnvil®
Weight2.01 lbs
Pipe Size1-1/2 in
Bolt Diameter3/8 in
Load Capacity250 lb
MaterialCarbon Steel
FinishGalvanized
Dimensions10-1/4 in L x 1 in W
Manufacturer NameASC Engineered Solutions
SeriesFIG 261
Temperature Rating450 deg F
Torque Rating21 ft-lb
ApplicationFor support of stationary steel pipe risers, cast iron pipe or conduit
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsA-A-1192A (Type 8) | ANSI/MSS SP-69 and MSS SP-58 (Type 8) | cULus Listed

Item Features

  • For support of stationary steel pipe risers, cast iron pipe or conduit.
  • Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be PEX industry standards
  • Clamp is designed for standard steel pipe O.D and this must be considered in sizing the riser for other types of piping
