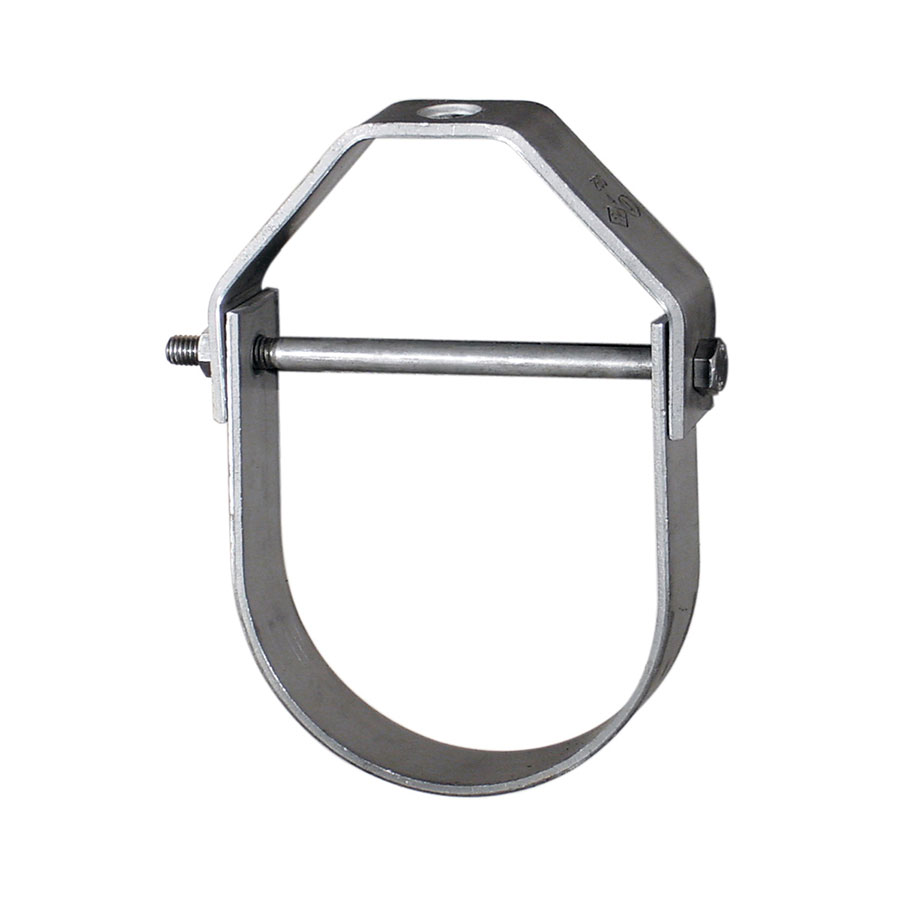

Anvil® 0500359518 FIG 260 Adjustable Clevis Hanger, 1 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Galvanized
CBPN:3830
UPC:690291101427
MPN:0500359518
Price:
$3.54 / EA
DESCRIPTION
Anvil® Clevis Hanger, Adjustable, Series: FIG 260, 1 in Pipe, 3/8 in Rod, 730 lb, Carbon Steel, Galvanized, 450 deg F
Anvil® 0500359518 FIG 260 Adjustable Clevis Hanger, 1 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Galvanized
CBPN:3830
MPN:0500359518
UPC:690291101427
Price:
$3.54 / EA
DESCRIPTION
Anvil® Clevis Hanger, Adjustable, Series: FIG 260, 1 in Pipe, 3/8 in Rod, 730 lb, Carbon Steel, Galvanized, 450 deg F
Specifications
Brand: Anvil®
Weight: 0.37 lbs
Pipe Size: 1 in
Rod Size: 3/8 in
Load Capacity: 730 lb
Material: Carbon Steel
Finish: Galvanized
Manufacturer Name: ASC Engineered Solutions
Series: FIG 260
Temperature Rating: 450 deg F
Type: Adjustable
Application: For suspension of stationary pipe lines
Country of Origin: US
Standards and Approvals: A-A-1192A (Type 1) | ANSI/MSS SP-69/SP-58 (Type 1) | cULus Listed | FM Approved | WW-H-171-E (Type 1) | UL/ULC Listed
Item Features
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized.
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Tighten upper nut after adjustment
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
