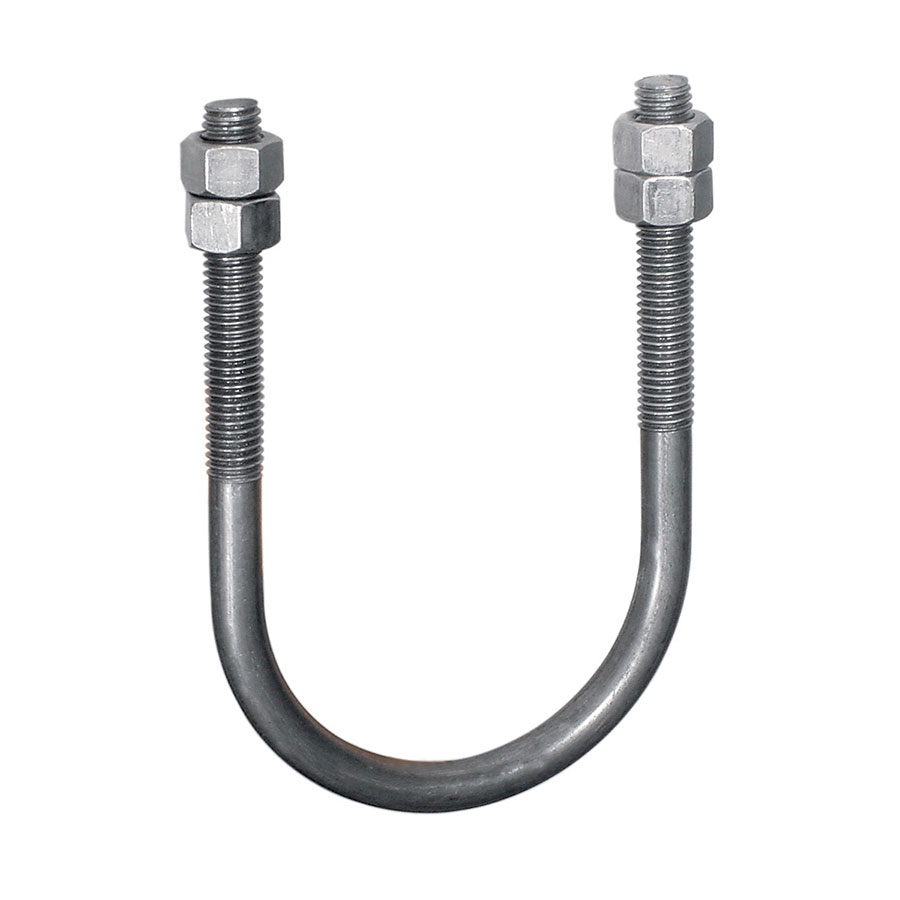

Anvil® 0500017124 FIG 137 Standard U-Bolt, 6 in Pipe, 5/8 in, Black, Carbon Steel
CBPN:3814
UPC:690291136252
MPN:0500017124
Price:
$20.65 / EA
DESCRIPTION
Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 5/8 in, 6-3/4 in Inside Width, Carbon Steel, 3-1/2 in Thread Length, Black, 6 in Pipe, 4320 lb Tensile
Anvil® 0500017124 FIG 137 Standard U-Bolt, 6 in Pipe, 5/8 in, Black, Carbon Steel
CBPN:3814
MPN:0500017124
UPC:690291136252
Price:
$20.65 / EA
DESCRIPTION
Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 5/8 in, 6-3/4 in Inside Width, Carbon Steel, 3-1/2 in Thread Length, Black, 6 in Pipe, 4320 lb Tensile
Specifications
Brand: Anvil®
Weight: 1.97 lbs
Pipe Size: 6 in
Diameter - Thread Size: 5/8 in
Finish: Black
Type: Standard
Material: Carbon Steel
Inside Width: 6-3/4 in
Manufacturer Name: ASC Engineered Solutions
Measurement System: Imperial
Series: FIG 137
Tensile Strength: 4320 lb
Thread Length: 3-1/2 in
Includes: (4) 5/8 in Hex Nuts
Country of Origin: US
Standards and Approvals: ANSI/MSS SP-69/SP-58 (Type 24) | Federal Specification A-A-1192A (Type 24) | WW-H-171-E (Type 24)
Item Features
- Recommended for support, or guide of heavy loads; often employed in power, process plant and marine service.
- For support or guide of heavy loads often employed in power, process plant and marine service
- 1080 lb side load at 650 deg F
- 4320 lb normal load at 650 deg F, 3382 lb normal load at 750 deg F
