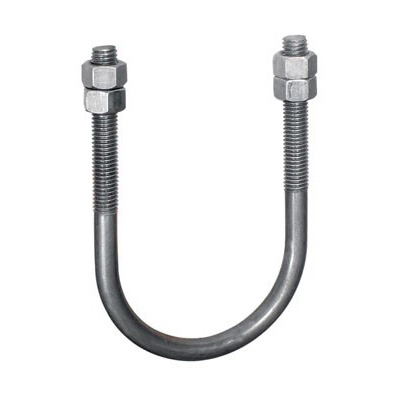

Anvil® 0500017025 FIG 137 Standard U-Bolt, 3/4 in Pipe, 1/4 in, Black, Carbon Steel
CBPN:3805
UPC:690291136153
MPN:0500017025
Price:
$3.54 / EA
DESCRIPTION
Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 1/4 in, 1-1/8 in Inside Width, Carbon Steel, 2-1/8 in Thread Length, Black, 3/4 in Pipe, 580 lb Tensile
Anvil® 0500017025 FIG 137 Standard U-Bolt, 3/4 in Pipe, 1/4 in, Black, Carbon Steel
CBPN:3805
MPN:0500017025
UPC:690291136153
Price:
$3.54 / EA
DESCRIPTION
Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 1/4 in, 1-1/8 in Inside Width, Carbon Steel, 2-1/8 in Thread Length, Black, 3/4 in Pipe, 580 lb Tensile
Specifications
Brand: Anvil®
Weight: 0.12 lbs
Pipe Size: 3/4 in
Diameter - Thread Size: 1/4 in
Finish: Black
Type: Standard
Material: Carbon Steel
Inside Width: 1-1/8 in
Manufacturer Name: ASC Engineered Solutions
Measurement System: Imperial
Series: FIG 137
Tensile Strength: 580 lb
Thread Length: 2-1/8 in
Includes: (4) 1/4 in Hex Nuts
Country of Origin: US
Standards and Approvals: ANSI/MSS SP-69/SP-58 (Type 24) | Federal Specification A-A-1192A (Type 24) | WW-H-171-E (Type 24)
Item Features
- Recommended for support, or guide of heavy loads; often employed in power, process plant and marine service.
- For support or guide of heavy loads often employed in power, process plant and marine service
- 145 lb side load at 650 deg F
- 580 lb normal load at 650 deg F, 454 lb normal load at 750 deg F
