Ames Fire & Waterworks® 0191074

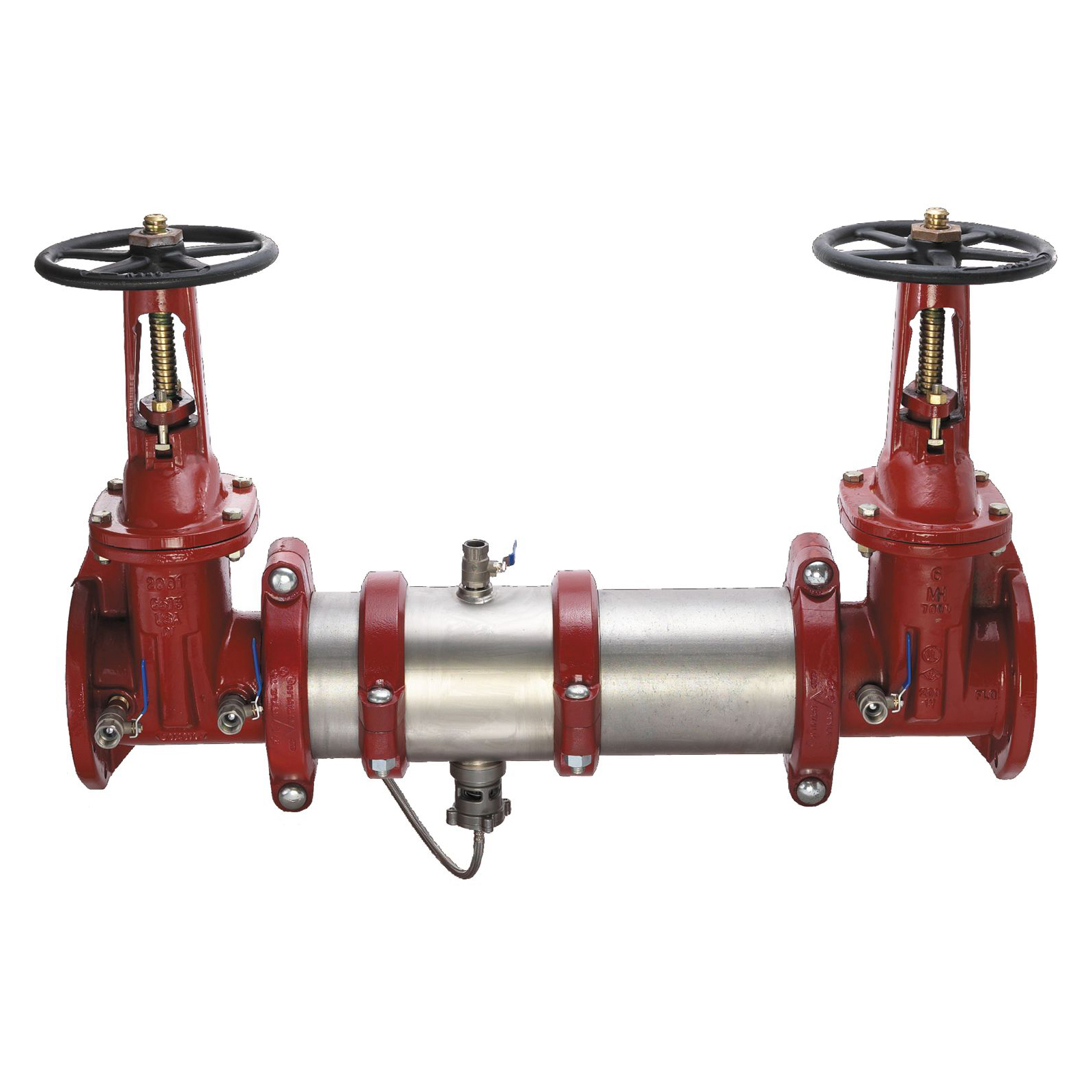

Ames Fire & Waterworks® Maxim™ 0191074 M400 Reduced Pressure Zone Assembly, 4 in Nominal, Grooved End Style, Resilient Seated Gate Valve, 304 Stainless Steel Body, Domestic

CBPN:269243

UPC:737733000754

MPN:0191074

Price:
$9021.28 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:

DESCRIPTION

Ames Fire & Waterworks® Maxim™ Reduced Pressure Zone Assembly, Series: M400, 4 in Nominal, Grooved, 175 psi, 33 to 110 deg F, Resilient Seated Gate Valve, 304 Stainless Steel Body, 40-1/2 in L x 11-5/16 in W, Domestic

This Maxim™ 4 in lead free reduced pressure zone assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. This extremely compact and lighter than traditional designed assembly is approved for horizontal installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check modules, resilient seated gate valves with outside stem and yoke, test cocks and a bottom mounted pressure relief valve.

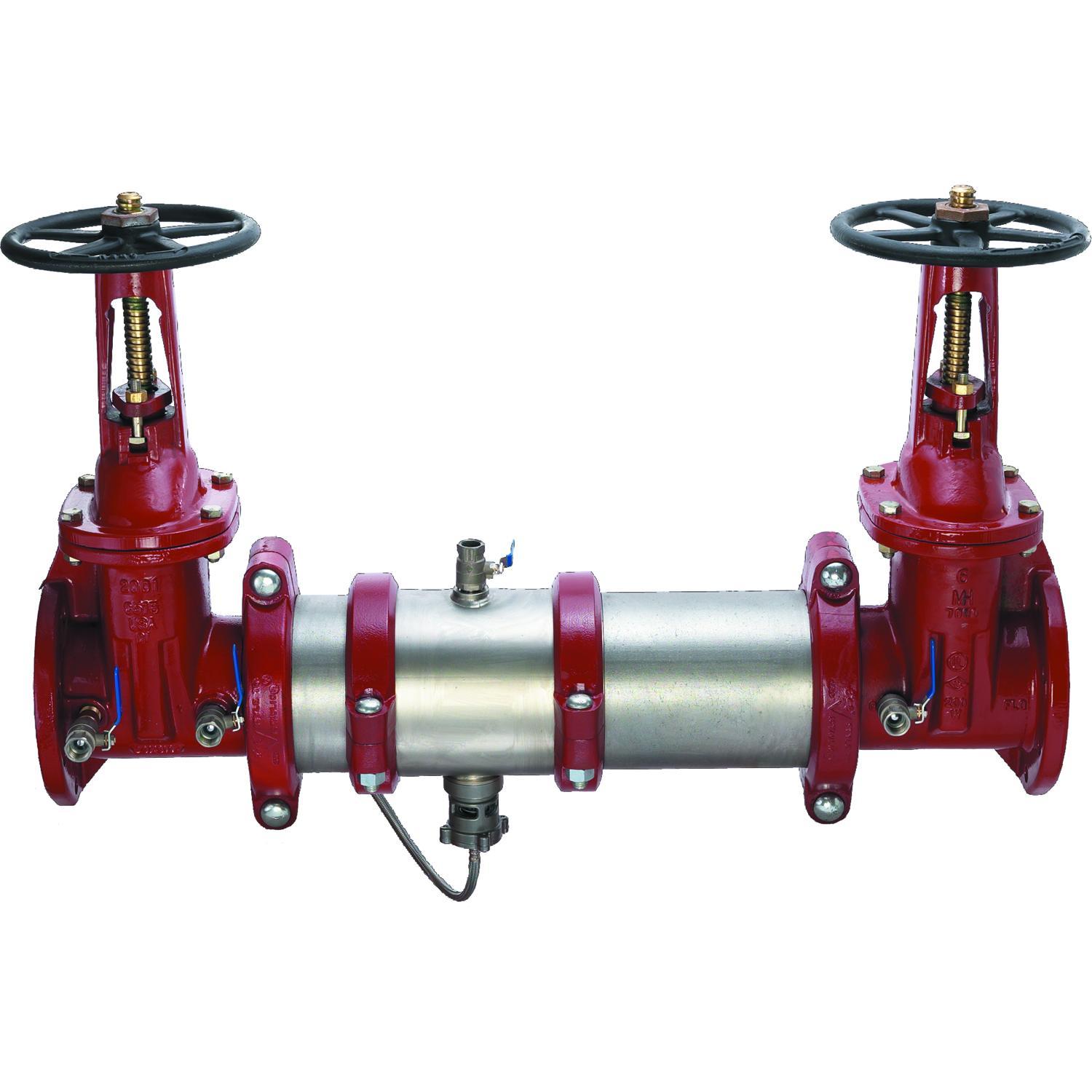

Ames Fire & Waterworks® Maxim™ 0191074 M400 Reduced Pressure Zone Assembly, 4 in Nominal, Grooved End Style, Resilient Seated Gate Valve, 304 Stainless Steel Body, Domestic

CBPN:269243

MPN:0191074

UPC:737733000754

Price:
$9021.28 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

Prop 65:
Ames by Watts Logo

DESCRIPTION

Ames Fire & Waterworks® Maxim™ Reduced Pressure Zone Assembly, Series: M400, 4 in Nominal, Grooved, 175 psi, 33 to 110 deg F, Resilient Seated Gate Valve, 304 Stainless Steel Body, 40-1/2 in L x 11-5/16 in W, Domestic

This Maxim™ 4 in lead free reduced pressure zone assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. This extremely compact and lighter than traditional designed assembly is approved for horizontal installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check modules, resilient seated gate valves with outside stem and yoke, test cocks and a bottom mounted pressure relief valve.

Specifications

BrandAmes Fire & Waterworks®
Nominal Size4 in
End StyleGrooved
Ball Valve/Gate Valve TypeResilient Seated Gate Valve
Body Material304 Stainless Steel
Dimensions40-1/2 in L x 11-5/16 in W
Manufacturer NameWatts Water Technologies
Pressure Rating175 psi
SeriesM400
Temperature Rating33 to 110 deg F
IncludesSleeve and Torsion Spring Check Valves
ApplicationFire Protection
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsApproved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California | ASSE 1013 | AWWA C551-92 | cCSAus B64.4 | cULus Listed | FM Approved | NSF/ANSI 61-G | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Groove couplings allow for easy installation and pipe alignment
  • 70% lighter than traditional designs
  • Link check modules provide lowest pressure loss
  • Drip tight shutoff valves
  • Bottom mounted stainless steel relief valve
  • 304 (SCH 40/STD) stainless steel housing and sleeve
  • Replaceable check disc rubber
  • Extremely compact design allows for small enclosures to be used
  • Torsion spring check modules for easy of serviceability
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • UL/FM outside stem and yoke resilient seated gate valve

Standards

Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1013|AWWA C551-92|cCSAus B64.4|cULus Listed|FM Approved|NSF/ANSI 61-G | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
