ALOYCO 110FC02014 FIG 110 Gate Valve, 1-1/2" Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Bolted Bonnet, Flexible Wedge Disc
CBPN:160272
MPN:110FC02014
Price:
$763.35 / EA
DESCRIPTION

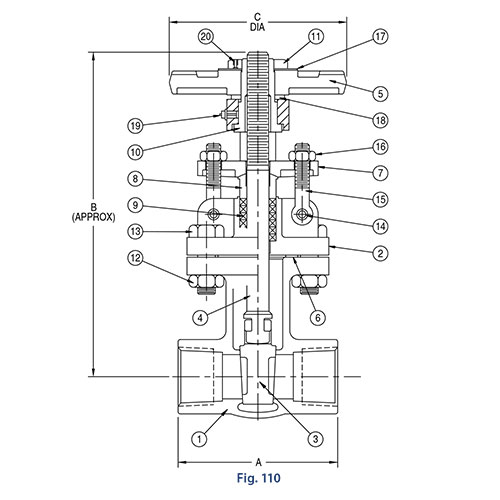

ALOYCO Gate Valve, Figure 110, 1-1/2 in Nominal, FNPT, 150 lb, OS&Y, Raised Face, CF3M Stainless Steel Body, Bolted Bonnet, Rising Stem, Flexible Wedge Disc
ALOYCO 110FC02014 FIG 110 Gate Valve, 1-1/2" Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Bolted Bonnet, Flexible Wedge Disc
CBPN:160272
MPN:110FC02014
Price:
$763.35 / EA
DESCRIPTION
ALOYCO Gate Valve, Figure 110, 1-1/2 in Nominal, FNPT, 150 lb, OS&Y, Raised Face, CF3M Stainless Steel Body, Bolted Bonnet, Rising Stem, Flexible Wedge Disc
Specifications
Brand: Aloyco®
Weight: 9.8 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 150 lb
Body Material: Stainless Steel
Softgoods Material: PTFE
Actuator Type: Handwheel
Hand Wheel Diameter: 5.5 in
Inlet to Outlet Length: 4.13 in
Manufacturer Name: Crane ChemPharma Energy
Top to Inlet Center: 11 in
Trim Material: API Trim 10 (316SS)
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: MSS SP-42, ASME B16.34, API 603
Item Features
- Solid Wedge Disc (1/2 - 1")
- Flexible Wedge Disc (1-1/2 - 2")
- Bolted Bonnet
- Rising Stem
- Integral Seat
- Outside Stem & Yoke
- API Trim 10 (316 SS)
